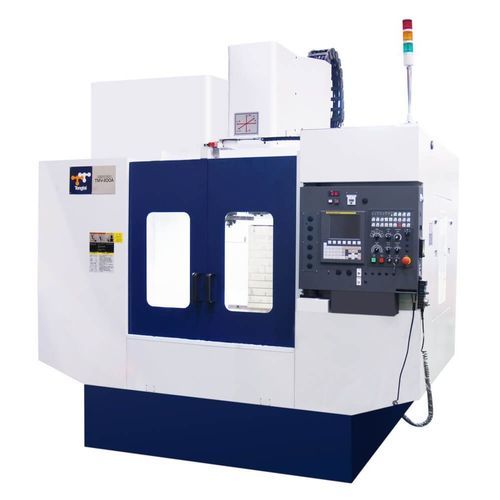

3-axis CNC machining center TMV-A seriesverticalBT 40BT 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, BT 50
- Number of tool stations
- 24 tools, 40 tools, 30 tools, 32 tools
- X travel
Max.: 1,600 mm
(62.99 in)Min.: 720 mm
(28.35 in)- Y travel
Max.: 800 mm
(31.5 in)Min.: 480 mm
(18.9 in)- Z travel
530 mm, 700 mm, 710 mm
(20.87 in, 27.56 in, 27.95 in)- Rotational speed
Max.: 15,000 rpm
(94,248 rad.min-1)8,000 rpm
(50,265 rad.min-1)Min.: 3,500 rpm
(21,991 rad.min-1)- Power
5.5 kW, 7.5 kW, 11 kW, 15 kW
(7.48 hp, 10.2 hp, 14.96 hp, 20.39 hp)- Work feed X-axis
15 m/min, 18 m/min, 20 m/min, 30 m/min, 48 m/min
- Work feed Y-axis
15 m/min, 18 m/min, 20 m/min, 30 m/min, 48 m/min
- Work feed Z-axis
12 m/min, 15 m/min, 18 m/min, 24 m/min, 48 m/min
- Table load capacity
500 kg, 1,000 kg, 1,300 kg, 1,869 kg, 2,000 kg
(1,102 lb, 2,205 lb, 2,866 lb, 4,120 lb, 4,409 lb)
