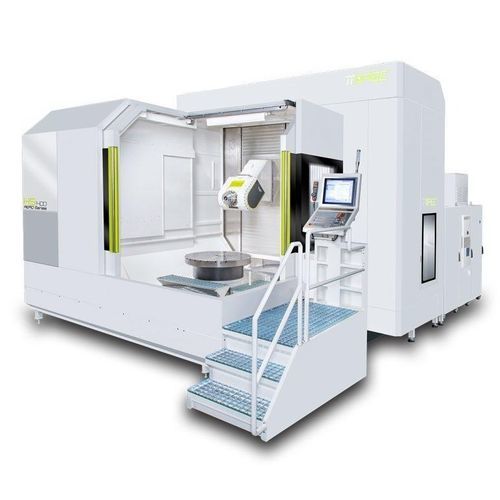

5-axis CNC machining center APEC HS1400
horizontalHSK A-63HSK-A 100

5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
horizontal
Spindle mount
HSK A-63, HSK-A 100
Number of tool stations
40 tools, 60 tools, 120 tools
Applications
for the aeronautical industry
Other characteristics
high-speed, high-power, high-rigidity
X travel

1,800 mm
(70.87 in)

Y travel

1,250 mm
(49.21 in)

Z travel

1,320 mm
(51.97 in)

Rotational speed

12,000 rpm, 15,000 rpm, 24,000 rpm
(75,398 rad.min-1, 94,248 rad.min-1, 150,796 rad.min-1)

Power

Min.: 45 kW
(61.18 hp)

Max.: 76 kW
(103.33 hp)

Work feed X-axis

50 m/min

Work feed Y-axis

50 m/min

Work feed Z-axis

50 m/min

Table load capacity

2,000 kg, 3,200 kg
(4,409 lb, 7,055 lb)
