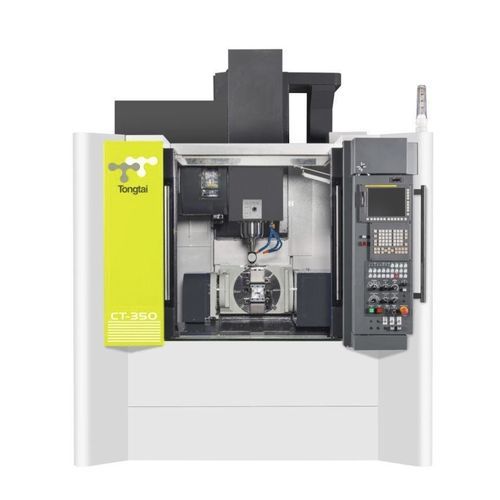

5-axis CNC machining center CT seriesverticalBBT40HSK-63-A
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- BBT40, HSK-63-A
- Number of tool stations
- 24 tools, 40 tools, 30 tools
- Applications
- for the automobile industry, for molds, for the aeronautical industry, for medical applications
- Other characteristics
- direct-drive, high-precision, with automatic tool changer
- X travel
400 mm, 950 mm
(15.75 in, 37.4 in)- Y travel
510 mm, 700 mm
(20.08 in, 27.56 in)- Z travel
510 mm
(20.08 in)- Rotational speed
15,000 rpm, 20,000 rpm
(94,248 rad.min-1, 125,664 rad.min-1)- Power
7.5 kW, 11 kW, 15 kW, 30 kW, 40 kW
(10.2 hp, 14.96 hp, 20.39 hp, 40.79 hp, 54.38 hp)- Work feed X-axis
36 m/min
- Work feed Y-axis
36 m/min
- Work feed Z-axis
36 m/min
- Table load capacity
200 kg, 400 kg
(441 lb, 882 lb)
