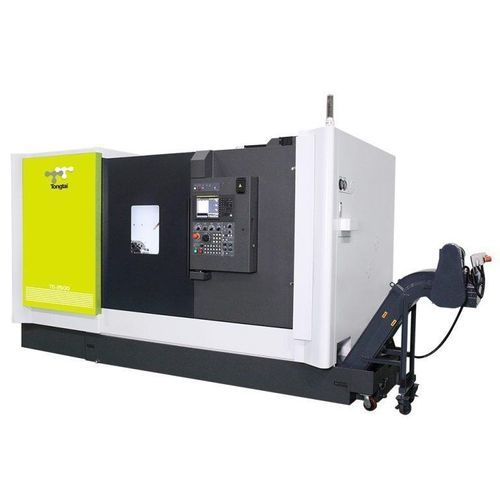

CNC lathe TG serieshorizontal2-axis3-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis, 3-axis
- Structure
- inclined bed
- Spindle mount
- A2-8, A2-11
- Number of tool stations
- 12 tools
- Performance
- powerful
- Diameter
74 mm, 90 mm
(2.91 in, 3.54 in)- Spindle speed
2,500 rpm, 3,500 rpm
(15,707.963 rad.min-1, 21,991.149 rad.min-1)- Bar capacity
74 mm
(3 in)- Axe X
275 mm
(11 in)- Axe Z
1,100 mm, 1,600 mm, 2,000 mm
(43 in, 63 in, 79 in)- Rapids on X
24 m/min
- Rapids on Z
24 m/min
- Nominal power
Max.: 35 kW
(47.6 hp)Min.: 15 kW
(20.4 hp)
