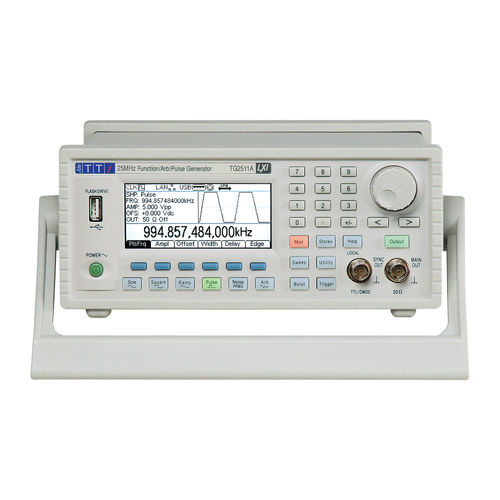

Function generator TG251xA/501xA Series

noisepulsedual-channel

High Performance Function/Arbitrary/Pulse Generator 25MHz or 50MHz, 1 or 2 Channels • One or two channels • 0.001mHz to 50MHz/25MHz range; 14 digits or 1uHz resolution. • Standard waveforms include sine, square, ramp, pulse, sin(x)/x, noise, exponential, logarithmic and PRBS. • True pulse generator with variable delay and variable rise/fall. • Arbitrary waveforms of up to 128K points at up to 125MS/s. • Waveform storage using USB flash drives. • Large graphic LCD with simultaneous text and waveform display. • Comprehensive internal and external digital modulations including AM, FM, PM, PWM, FSK, BSPK, Sum and PRBS. • 20mV to 20V pk-pk output from 50Ohms ; plus multi function aux. out. • Storage for multiple instrument set-ups in non-volatile memory. • Waveform Manager Plus for Windows software included. • Programmable via USB and LAN (LXI) interfaces; GPIB optional.
