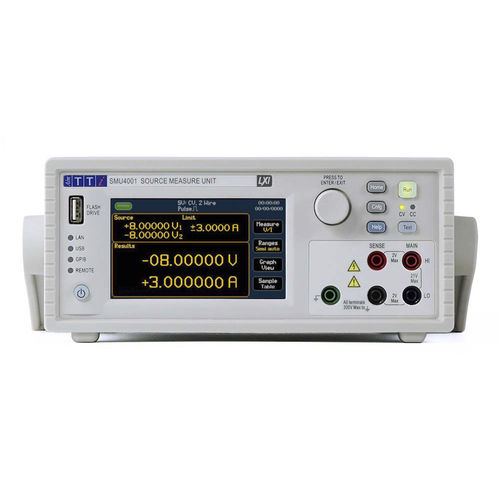

Source measure unit SMU4000 Series

Source Measure Unit with 20 and 200V versions • 4-quadrant Source, Sink & Measure • 0.015% basic accuracy with 6½ digit resolution. • Sense terminals for 4 wire operation and guard capabilities • PowerFlex technology: up to ±210V, up to ±3.15A (SMU4201) or up to ±21V, up to ±3.15A (SMU4001),  25W power envelope. • 0.1µV & 100fA resolution • Fast measurement speeds up to 200µs (5k/s) • Continuous or pulsed high speed outputs with Linear/Log or arbitrary list sweeps • Compact size • Internal memory, up to 100k measurements, up to 100k steps • ‘SMU Link’ allows two SMUs to be linked together for synchronous operation (optional accessory) • Full control of multiple units with Test Bridge SMU Windows software (free download)
