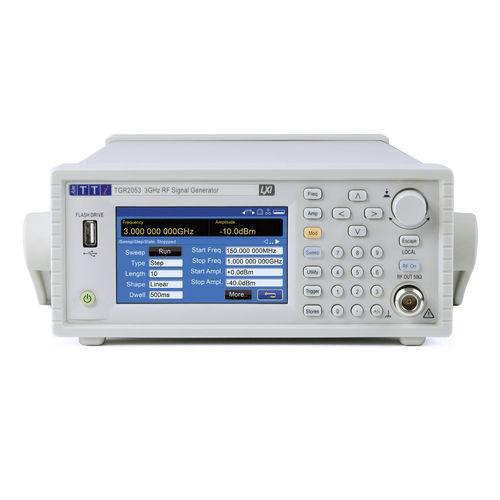

Signal generator TGR205x Series

RFprogrammablesweep

RF Signal Generator with 1.5 and 3GHz models • 150kHz to 3GHz (TGR2053) and 150kHz to 1.5GHz (TGR2051) frequency range • High signal purity, phase noise <-117dBc/Hz (typical) at 1GHz output and 10kHz offset • Amplitude range of -127dBm to +13dBm • 0.1dBm amplitude setting resolution • Internal or external analogue modulations (AM, FM, PM) • Amplitude can be set in dBm, dBμV or in linear Volts. • Internal or external digital modulations - ASK, OOK, FSK, 3FSK, 4FSK, GFSK, MSK, GMSK, HMSK & PSK with U01 option • Modulation Synchronisation • Fast amplitude and/or frequency sweeps with comprehensive triggering • 5ms sweep settling time • 1ppm frequency accuracy, <1ppm drift in first year • Modulation waveform output on the rear panel • Internal waveforms include: Sine, Square, Ramp, Triangle, PRBS (various lengths) and user-defined pattern • Simple operation with the colour touch screen • Programmable via USB, LAN (LXI) and GPIB (optional), SCPI compatible • Compatible with previous Aim-TTi RF generators
