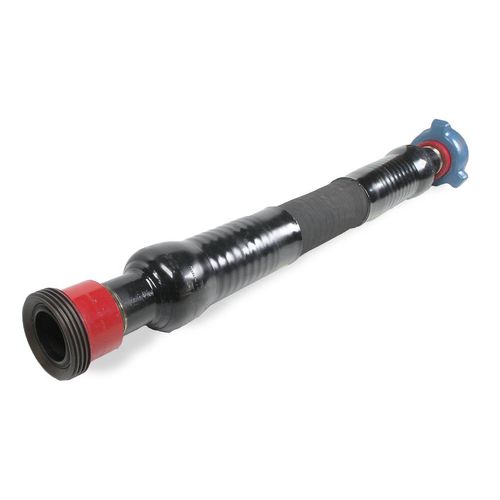

Crude oil hose
for oilNBRsteel

crude oil hose
crude oil hose
Add to favorites
Compare this product


Characteristics

Use
for crude oil, for oil
Material
NBR, steel, polyester
Applications
heavy-duty, for petrochemical applications
Other characteristics
flexible, abrasion-resistant, reinforced, corrosion-resistant, rotary, braided
Inner diameter

Max.: 100 mm
(3.937 in)

Min.: 65 mm
(2.559 in)

Outer diameter

Max.: 164 mm
(6.457 in)

Min.: 105 mm
(4.134 in)

Pressure

344 bar, 517 bar
(4,989.298 psi, 7,498.451 psi)

Temperature

Max.: 82 °C
(179.6 °F)

Min.: -20 °C
(-4 °F)

Delivered length

27 m
(88'06" )

Description

ROTARY VIBRATOR / DRILLING Internal layer: Modified NBR rubber Reinforcement: Multiple layers of high tensile plated steel cables and polyester braid embedded in rubber External layer: Modified NBR rubber Hoses intended for crude oil, also sulphated oil, drilling fluid, drill cuttings, for a blow-out preventer (BOP). Fitted on onshore and offshore oil rigs. This group includes such hoses as: ROTARY DRILLING, ROTARY VIBRATOR, CHOKE&KILL. The inner layer made of NBR rubber, Viton. Reinforced with several layers of steel wire and textile reinforcement. These hoses feature high working pressure (up to 1000 bar) and excellent mechanical strength. Fittings are assembled in a special way or vulcanised firmly with the hose. Supplied as complete hose assemblies, tested and certified, with couplings compliant with API standards (American Petroleum Institute) and with HAMMER LUG couplings.
