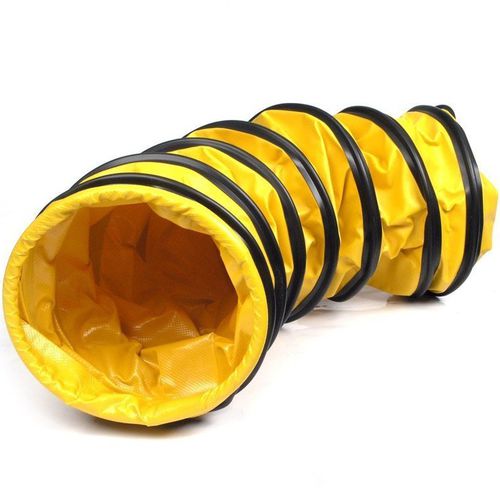

Air hose ND-PLS series
steelpolyestertransfer

air hose
air hose
Add to favorites
Compare this product


Characteristics

Use
for air
Material
steel, polyester
Applications
transfer, for industrial vacuum cleaners, for ventilation
Other characteristics
flexible, lightweight, standard, flame-retardant, vacuum, special, self-extinguishing, PVC-coated, duct
Inner diameter

Min.: 152 mm
(5.984 in)

Max.: 1,000 mm
(39.37 in)

Outer diameter

Min.: 152.6 mm
(6.008 in)

Max.: 1,000.6 mm
(39.394 in)

Pressure

Min.: 0.1 bar
(1.45 psi)

Max.: 0.64 bar
(9.282 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 100 °C
(212 °F)

Delivered length

2.5 m
(8'02" )

Description

Material: Special PVC-coated polyester fabric Wall thickness: 0.3 mm Reinforcement: Steel wire helix Lightweight, highly flexible, flame retardant hose designed for air-conditioning systems or hot and cold air transfer to tents and buildings. Available as a standard with soft ends (see picture above). On request supplied in different colours or with steel rope end rings that allow connection of the hose for required length with the use of coupling bands. Other ducting and ventilation hoses as well as special hoses for strictly defined applications, of various design and material: exhaust extraction hoses for cars and aggregates; welding fume extraction hoses made of self-extinguishing PVC; PVC ducting hoses; hoses for cold and hot air blowing; hoses for industrial vacuum cleaners; hoses for road sweepers and street cleaning machines; vacuum lifting hoses.
