Hydraulic connector HK seriesSocketflangesteel
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Format
- Socket
- Connection type
- flange
- Material
- steel, zinc-plated steel
- Domain
- weld
- Other characteristics
- compact
- Operating temperature
Max.: 100 °C
(212 °F)Min.: -20 °C
(-4 °F)
Description

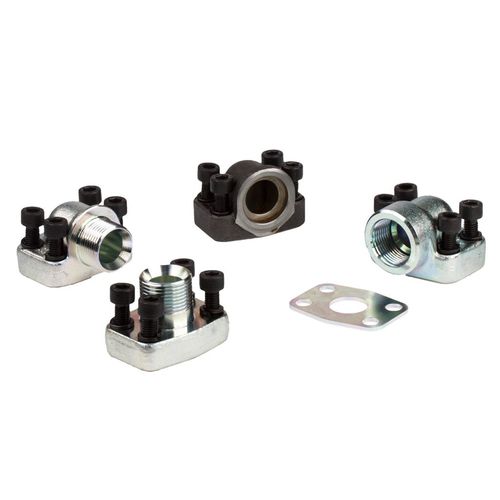

These very compact SAE flange connectors are available as two standard types:
threaded connectors ( with metric or BSP imperial threads),
socket weld connectors.
They are equipped with a set of mounting screws and o-ring seal (it does not apply to counterflanges). Made of zinc-plated steel as standard material. The connectors made of AISI 316L steel are available on request. The working temperature is in the range from -20°C to +100°C for NBR sealing and from -20°C do +200°C for Viton sealing.
