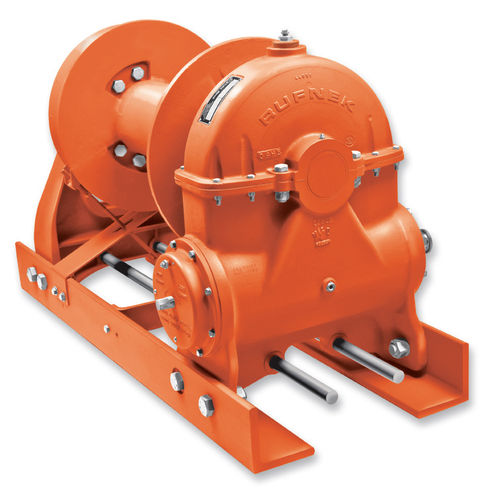

Worm gear winch RN100Whydraulicmechanical
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, mechanical
- Type
- wire rope
- Other characteristics
- worm gear
- Capacity
Max.: 100,000 lb
(45,359.2 kg)Min.: 52,972 lb
(24,027.7 kg)- Speed
Max.: 4,267.2 mm/min
(2.8 in/s)Min.: 2,133.6 mm/min
(1.4 in/s)- Cable diameter
1 in
- Cable length
Max.: 107 m
(351'00" )Min.: 15 m
(49'02" )- Pressure
121 bar
(1,754.96 psi)- Flow
151 l/min
(39.89 us gal/min)- Weight
1,975 lb, 2,076 lb
(895.845 kg, 941.658 kg)
Description
Worm gear winches
With over 75 years of experience and knowledge, TWG’s worm gear winches have the strength to pull you out of trouble. Our worm gear winches are commonly used in the Infrastructure, Recovery and Energy markets custom built for each application.
With line pull ratings from 9000 lbs (40 kN) to 130,000 lbs (572 kN), our worm gear winches can handle a wide range of requirements.
Features
• - Hydraulic or mechanical input
• - Manual, pneumatic & hydraulic kick-out
• - Air control for clutch & band brake
• - Adjustable worm brake
• - Drum band brake
Catalogs
RUFNEK Worm Gear Catalog
16 Pages
