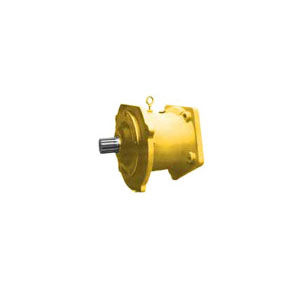

Disc brake 200MDBspringhydraulicfor motors
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- spring, hydraulic
- Other characteristics
- for motors
- Torque
14,900 Nm
(10,989.676 ft.lb)
Description
Static Braking Torque: 131,876 in-lbs/14,900 Nm
Dynamic Braking Torque: Consult Factory
Min Pressure - Full Release: 310 psi/21.4 bar
Max Pressure: 1,000 psi/69 bar
Cylinder Displacement: 15 cu in/246 cc
Max Operating Speed: 2,000 rpm/2,000 rpm
Max Operating Temp.: 175°F/80°C
Product Features
Direct Mount to Low Speed High Torque Motors
Spring Applied / Hydraulic Released
Oil immersed multidisc design
Spherical Roller Bearing
Product Benefits
Compact, simplified & cost effective mounting
Auto engage on loss of system pressure
Corrosion resistant with minimal wear
Output shaft supports overhung loads
