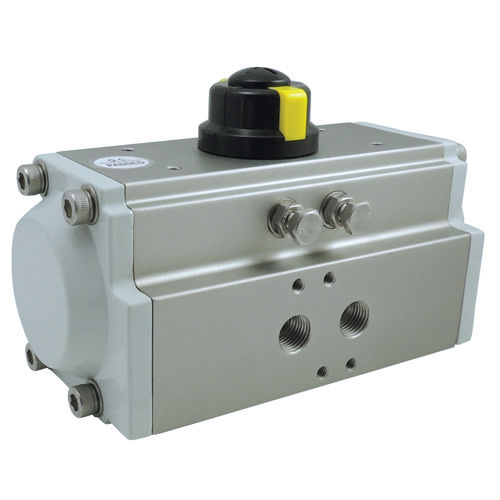

Pneumatic valve actuator 8090D series90°rack-and-piniondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- 90°
- Technology
- rack-and-pinion
- Configuration
- double-acting
- Other characteristics
- ATEX, NAMUR
- Torque
Max.: 10,255 Nm
(7,563.7 ft.lb)Min.: 9 Nm
(6.64 ft.lb)
Description
TUNING DOUBLE ACTING PNEUMATIC ACTUATOR -20°C to +150°C Racks and pinion type double acting pneumatic actuator - 0 to 90° rotation with +/- 5° thru adjustment screws - Extruded and anodised aluminium body - Epoxy coated aluminum caps - Nickel plated steel pinion - A2 stainless steel screws - FKM seals for operation between -20°C and +150°C - ISO 5211 mounting pad and female shaft with double square pattern according to DIN 3337 - Accessories top mounting pad according to VDI/VDE NAMUR with external position indicator - NAMUR and threaded front side plate for solenoid attachment or direct air connectivity - ATEX II2 GDc - TUNING
