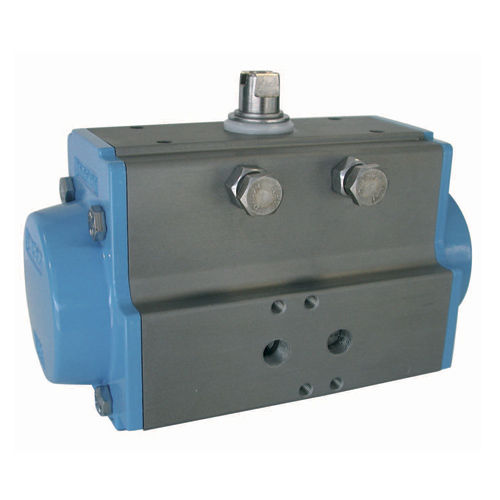

Pneumatic valve actuator 80080 series90°rack-and-piniondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- 90°
- Technology
- rack-and-pinion
- Configuration
- double-acting
- Other characteristics
- NAMUR
- Torque
Max.: 5,519 Nm
(4,070.61 ft.lb)Min.: 22 Nm
(16.23 ft.lb)
Description
VALBIA DOUBLE ACTING PNEUMATIC ACTUATOR -40°C à +85°C Racks and pinion type double acting pneumatic actuator - 0 to 90° rotation with +/- 5° thru adjustment screws - Extruded and anodised aluminium body - Epoxy coated aluminum caps - Nickel plated steel pinion - A2 stainless steel screws - HNBR seals for operation between -40°C and +85°C - ISO 5211 mounting pad and female shaft with double square pattern according to DIN 3337 - Accessories top mounting pad according to VDI/VDE NAMUR - NAMUR and threaded front side plate for solenoid attachment or direct air connectivity - VALBIA
