Oil hose XLPED671for acidsfor solventsalcohol
Add to favorites
Compare this product
Characteristics
- Use
- for oil, for acids, for solvents, alcohol, for crude oil
- Material
- EPDM
- Applications
- discharge, for chemical applications
- Other characteristics
- abrasion-resistant, oil-resistant, weather-resistant, anti-static, translucent, spiral wire
- Inner diameter
Min.: 19 mm
(0.748 in)Max.: 101.6 mm
(4 in)- Outer diameter
Min.: 30 mm
(1.181 in)Max.: 118 mm
(4.646 in)- Pressure
10 bar
(145.038 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)
Description

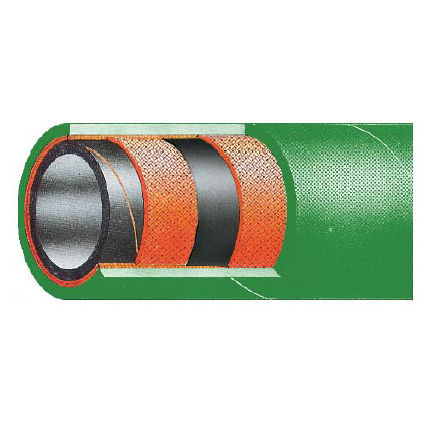

TUBE
REINFORCEMENT
COVER
APPLICATION
CHEMICALS. SOLVENTS. PETROLEUM PRODUCTS & OIL RESISTANT TRANSLUCENT XLPE.
HIGH TENSILE SYNTHETIC TEXTILE AND ANTISTATIC COPPER WIRE.
WEATHER.OZONE AND ABRASION RESISTANT EPDM RUBBER.
FOR DISCHARGE WIDE RANGE OF CHEMICALS. PETROLEUM PRODUCTS. OILS, HIGH AROMATIC SOLVENTS. ALCOHOL ETC.
(SEE SEL CHEMICAL RESISTANCE CHART).
