Oil hose XLPEFC68Ffor solventsalcoholfor crude oil
Add to favorites
Compare this product
Characteristics
- Use
- for oil, for solvents, alcohol, for crude oil
- Material
- EPDM
- Applications
- discharge, for chemical applications
- Other characteristics
- abrasion-resistant, oil-resistant, chemical-resistant, weather-resistant, anti-static, translucent, corrugated, spiral wire
- Inner diameter
Max.: 127 mm
(5 in)Min.: 19 mm
(0.748 in)- Outer diameter
Max.: 148 mm
(5.827 in)Min.: 29 mm
(1.142 in)- Pressure
10 bar
(145.038 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description

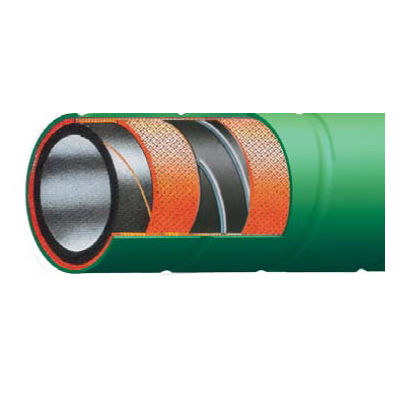

TUBE
REINFORCEMENT
COVER
APPLICATION
CHEMICALS. SOLVENTS. PETROLEUM PRODUCTS & OIL RESISTANT TRANSLUCENT XLPE.
HIGH TENSI LE SYNTHETIC TEXTILE. STEEL Wl RE HELIX AND ANTISTATIC COPPER WIRE.
WEATHER.OZONE AND ABRASION RESISTANT EPDM RUBBER. FLAT CORRUGATEp
FOR SUCTION AND DISCHARGE WIDE RANGE OF CHEMICALS. PETROLEUM PRODUCTS. OILS. HIGH AROMAT1C SOLVENTS. ALCOHOL ETC.
(SEE SEL CHEMICAL RESISTANCE CHART).
