Acid hose UHMWPEC608for solventsfoodstufffor corrosive fluids
Add to favorites
Compare this product
Characteristics
- Use
- for acids, for solvents, foodstuff, for corrosive fluids
- Material
- EPDM
- Applications
- discharge, for chemical applications
- Other characteristics
- abrasion-resistant, chemical-resistant, weather-resistant, anti-static, translucent, corrugated, spiral wire
- Inner diameter
Min.: 19 mm
(0.748 in)Max.: 101.6 mm
(4 in)- Outer diameter
Min.: 29 mm
(1.142 in)Max.: 118 mm
(4.646 in)- Pressure
10 bar
(145.038 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)
Description

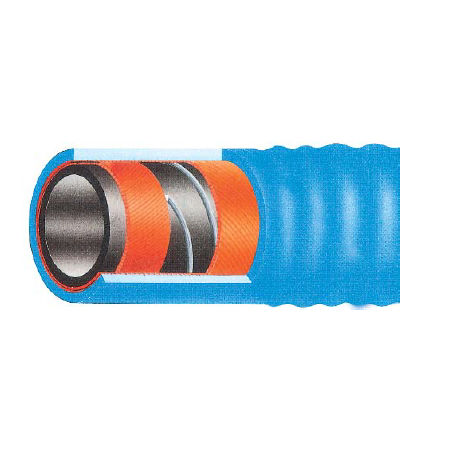

TUBE
REINFORCEMENT
COVER
APPLICATION
TRANSLUCENT. FOOD GRADE UHMW-PE LINER SUITABLE FOR WIDE RANGE OF CORROSIVE CHEMICALS AND SOLVENTS.
HIGH TENSILE SYNTHETIC TEXTILE. STEEL WIRE HELIX AND ANTISTAHC COPPER WIRE.
WEATHER.OZONE. ABRASION RESISTANT CORRUGATED EPDM RUBBER.
FOR SUCTION AND DISCHARGE OF AU. CORROSIVE CHEMICALS, ESPECl|ALLY HIGH AROMATIC SOLVENTS
(SEE SEL CHEMICAL RESISTANCE CHART).
