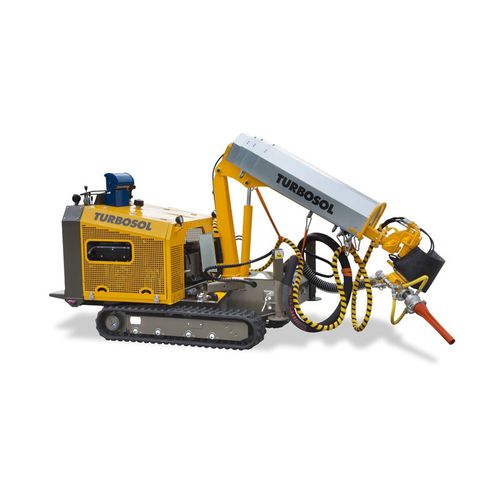

Concrete spraying machine TSR7

tracked

Crawler unit for shotcrete applications TSR 7 is a crawler equipment for spraying concrete in underground works. Equipped with two hydraulic self-braking rubber crawlers, TSR 7 is the best solution to move in rugged and irregular work sites with a total movement autonomy. TSR 7 is easy coupling with concrete pumps for shotcrete works. TSR 7 can work either with the diesel engine or with the electric motor. This dual operation mode allows it to work even in areas with scarce power supply. Thanks to the sturdy telescopic boom with 4 sections, long reach and compact design, TSR7 can be used either for dry or wet shotcrete. Two wide side doors make every component accessible for fast maintenance and control operations. The perfect addition to TSR 7 are Turbosol Beton Master or TB 30 stationary concrete pumps which can be supplied with integrated admixture dosing pump. Optionals - Shotcrete guns - Concrete hose Ø 50, Ø 65 and Ø 75 - Admixture hose - Air hose TURBOSOL TSR 7. TRACKED UNIT FOR SHOTCRETE APPLICATIONS. TOTAL MOVEMENT AUTONOMY Two hydraulically activated, self-braking rubber tracks and independently controlled Telescopic arm consisting of 4 steel elements with protection canopy Ideal instrument to combine with wet or dry pumps for shotcrete applications Manoeuvrability of the hydraulic arm, both by means of the 15 kW diesel engine and the 7.5 kW electric motor Bodywork to totally protect the mechanical parts
