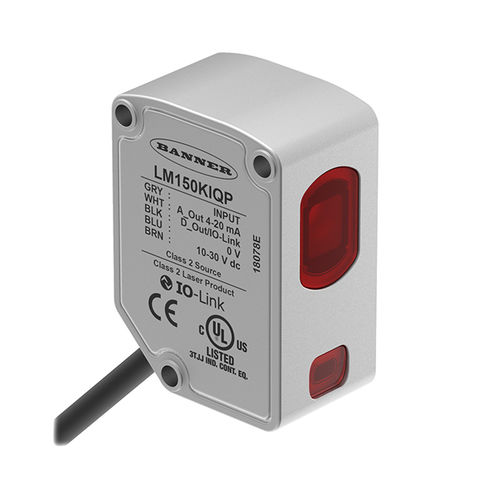

Diffuse photoelectric sensor LM150KIQP
rectangularlaseranalog

diffuse photoelectric sensor
diffuse photoelectric sensor
diffuse photoelectric sensor
Add to favorites
Compare this product


Characteristics

Sensing mode
diffuse
Housing
rectangular
Type of beam
laser
Other characteristics
metal, analog
Maximum range

Max.: 150 mm
(5.9 in)

Min.: 50 mm
(2 in)

Description

Stainless steel housing Protection class IP67 Connection via 300 mm cable with connector, M12 × 1, 5-pin Laser class 2 Visible red, 655 nm Analog output accuracy: 0,004 mm IO-Link accuracy: 0.2 mm Range: 50…150 mm Operating voltage: 10…30 VDC Push/pull switching output or IO-Link Analog output 4…20 mA Country of origin - US Weight - 213 g Technical Data Function - Proximity switch Operating mode - Triangulation Design - Rectangular Construction size - 35.8 x 23.5 x 48.5 mm, LM Range - 50…150 mm Optical resolution - 0.004 mm Light type - Red Laser class -  2 Operating voltage - 10…30 VDC Output function - NO contact, PNP/NPN, analog output Current output - 4…20 mA Communication protocol - IO-Link Electrical connection - Cable with connector, M12 × 1 Cable length - 0.150 m Housing material - Metal, Stainless steel, Grey Ambient temperature - -10…+55 °C
