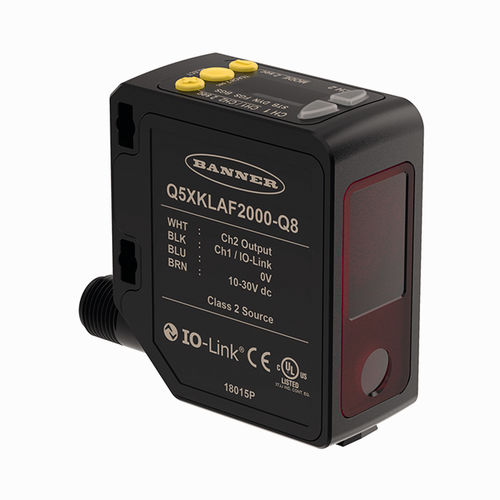

Diffuse photoelectric sensor Q5XKLAF2000-Q8

rectangularlaserplastic

4-digit 7-segment display Adjustable via pushbutton on the housing or IO-Link Protection class IP67 M12 × 1 male connector, 4-pin, rotatable Laser class 2, 650 nm, acc. to IEC 60825-1:2007 Range: 95…2000 mm Adjustable response time: 3, 5, 15, 25 or 50 ms Operating voltage: 10…30 VDC Output 1: PNP/NPN switching output with IO-Link communication Output 2: PNP/NPN switching output; teach-in input, laser control, synchronization or pulse frequency modulation (PFM) Country of origin - US Weight - 126 g Technical Data Function - Proximity switch Operating mode - Background/foreground suppression Design - Rectangular Construction size - 52 x 25 x 59.6 mm, Q5X Range - 95…2000 mm Light type - Red Laser class -  2 Operating voltage - 10…30 VDC Output function - NO contact, PNP/NPN Communication protocol - IO-Link Electrical connection - Connector, M12 × 1 Housing material - Plastic, ABS, Black Ambient temperature - -10…+50 °C
