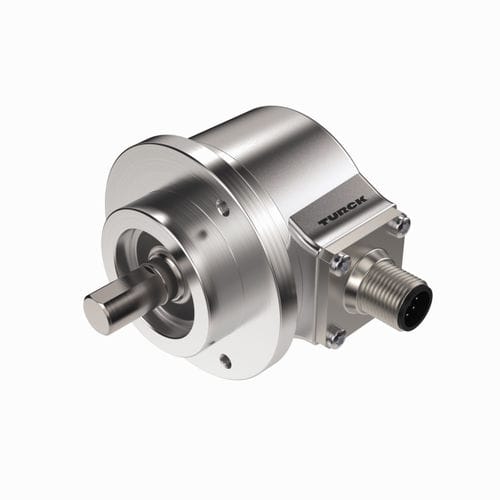

Incremental rotary encoder REI-E-113T10C-4B5000-H1181opticalsolid-shaftflange
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- solid-shaft, flange
- Output signal
- RS-422
- Electrical connection
- M12 connector
- Supply voltage
- 5 VDC, 24 Vdc, 15VDC, 12 Vdc
- Protection level
- IP64
- Incremental encoder résolution (pulses per revolution
Min.: 0 unit
Max.: 5,000 unit
- Flange size
58 mm
(2 in)- Shaft diameter
10 mm
(0.39 in)- Rotational speed
Min.: 3,000 rpm
(18,850 rad.min-1)Max.: 4,500 rpm
(28,274 rad.min-1)- Output frequency
300 kHz
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Clamping flange, Ø 58 mm
Solid shaft, Ø 10 mm × 20 mm
Optical measuring principle
Shaft material: stainless steel
Protection class IP64 on housing and shaft side
‐20…+70 °C
Max. 4500 rpm (continuous operation 3000 rpm)
5…30 VDC
RS422/TTL invertible
Pulse frequency max. 300 kHz
M12 × 1 male connector, 8-pin
5000 pulses per revolution
Country of origin - IN
Weight - 376 g
Technical Data
Encoder line - Efficiency-Line
Technology - Optical
Output type - Incremental
Shaft Type - Solid shaft
Shaft diameter D [mm] - 10 mm
Flange diameter - Ø 58 mm
Flange type - Clamping flange
Resolution, incremental - 5000 ppr
Operating voltage - 5…30 VDC
Output function - RS422/TTL, invertable
Electrical connection - Connector, M12 × 1
Housing material - Die-cast zinc
Ambient temperature - -20…+70 °C
