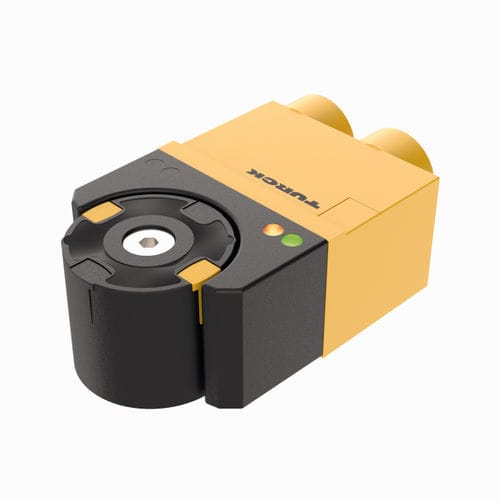

Absolute angle encoder RI360P1-DSU35-ELIU5X2-H1151inductive12-bitsingle-turn
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- inductive
- Absolute encoder revolution number
- 12-bit
- Construction
- single-turn, flange
- Output signal
- analog, voltage output, current output
- Supply voltage
- 15VDC, 24 Vdc
- Material
- plastic
- Protection level
- IP68, IP69K
- Other characteristics
- programmable
- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Rectangular, housing DSU35
Plastic, PP-GF30-VO
Detecting angular positions of 0° to 360°
P1-Ri-DSU35 positioning element included in delivery
Measuring range displayed via LED
Programmable measuring range
Immune to electromagnetic interference
Resolution, 12-bit
15…30 VDC
0…10 V and 4…20 mA
Male M12 x 1, 5-pin
Country of origin - DE
Weight - 144 g
Technical Data
Encoder line - Premium-Line
Technology - Contactless
Output type - Absolute singleturn
Construction size - 74 x 60 x 35.4 mm
Flange type - Flange without mounting element
Measuring range - 0…360°
Operating voltage - 15…30 VDC
Output function - Analog output
Voltage output - 0…10 V
Current output - 4…20 mA
Electrical connection - Connector, M12 × 1
Housing material - Plastic, PP-GF30
Ambient temperature - -25…+75 °C
