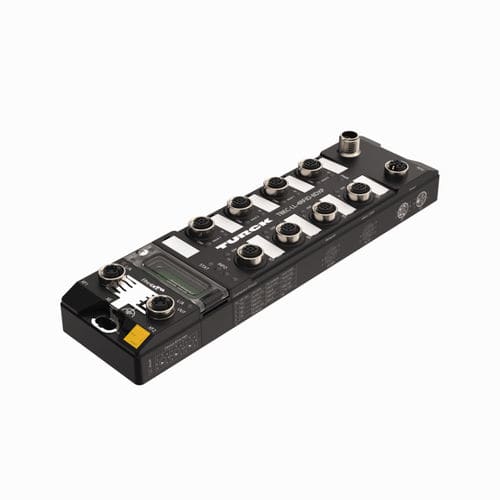

Compact RFID module TBEC-LL-4RFID-8DXP

UHF

Compact RFID Module for EtherCAT 4 RFID Channels (HF/UHF) and 8 Universal Digital Channels, Configurable as PNP Inputs or 2-A Outputs EtherCAT Slave acc. to Modular Device Profile Glass fiber reinforced housing Shock and vibration tested Fully potted module electronics Protection classes IP65, IP67, IP69K M12, L-coded connector for power supply ATEX Zone 2/22 Up to 128 bytes of user data per read/write cycle per channel and use of fragments with 16 kilobytes of FIFO memory each Data interface for convenient use of the RFID functions Continuous HF bus mode with up to 32 HF read/write heads per channel 4 channels with M12 connection for RFID 8 universal digital channels, configurable as PNP inputs or 2 A outputs Country of origin - DE Weight - 572 g Technical Data Network protocol - EtherCAT Signal type - RFID, Digital input, Digital input/output, Digital output Connection technology signal - M12 Device type - I/O Module, Compact station Fieldbus connection technology - 2 × M12, 4-pin, D-coded Ambient temperature - -40…+70 °C
