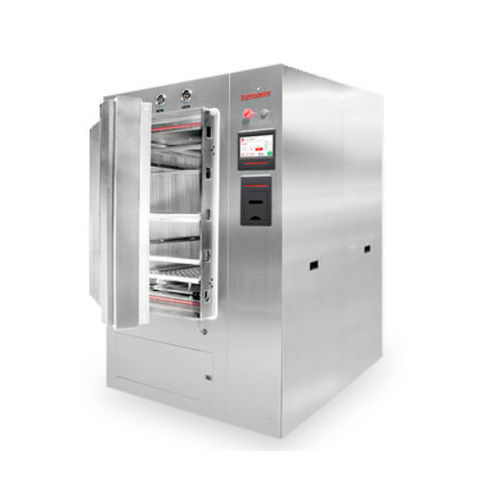

Process sterilizer 69 series
heathorizontalautomatic

process sterilizer
process sterilizer
process sterilizer
process sterilizer
Add to favorites
Compare this product


Characteristics

Laboratory/process
process
Sterilization method
heat
Other characteristics
horizontal, automatic
Applications
medical
Temperature range

Min.: 105 °C
(221 °F)

Max.: 138 °C
(280.4 °F)

Capacity

Min.: 510 l
(134.73 gal)

Max.: 1,010 l
(266.81 gal)

Width

610 mm
(24.02 in)

Height

910 mm
(35.83 in)

Depth

915 mm, 1,215 mm, 1,515 mm, 1,815 mm
(36.02 in, 47.83 in, 59.65 in, 71.46 in)

Description

The Horizontal 69 Autoclave Series of autoclaves is designed to accommodate chamber volumes ranging in size from 510 to 1010 liters and for the processing needs of various load configurations. The autoclave sterilizers are designed and manufactured in a state-of-the-art facility in compliance with strict international standards to ensure safe re-use of sterilized equipment. Tuttnauer also builds customized autoclave configurations to adapt to a customer’s site layout. The Horizontal 69 autoclave series is designed to cover a large field of applications for hospitals, CSSD and medical centers. The Horizontal 69 series of autoclaves operates with saturated steam as the sterilizing agent with a temperature range of 105 °C (221°F) to 138 °C (280 °F) and a working pressure that meets AMSE and PED requirements. The 69 series is available with two door options: Fully automatic horizontal sliding door Hinged door with automatic locking CUSTOM DESIGN FOR LIMITED SPACE Tuttnauer’s strong engineering capability allows for highly customized autoclave design. Facilities with space layout limitations will benefit from custom narrow design autoclaves which provide high capacity in a limited space. Narrow design autoclaves allow for more autoclaves in a given space to ensure continued sterile processing in case of autoclave downtime. GREEN WATER SAVING The optional EcoWater Radiator and EcoWater Chiller water saving systems are the best solutions to minimize water consumption between 50% and 90%
