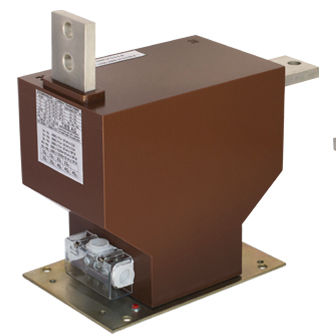

Current transformer Al 24 Models N & L

instrumentcast resinfor indoor service

We produce supporting type current transformers for indoor installation. They contain up to five cores for revenue metering and protection purposes, constructed from high quality siliceousor nickel steel laminations. All active parts are altogether impregnated with cycloaliphatic outdoor resin. In case 1:2 reconnection is requested, thiscan be achieved either by mounting reconnection bars to the primary terminals, or by an intermediate terminal at the secondary coil. Each terminal of the secondary coil can be grounded individually directly to the metal base through a bolt. These types aremaintenance free,and with respect to their main dimensions many types correspond to the German standards DIN 42600. Highest vo Itage for equipmet (kV) 24 Rated insulation level (kV) 24/50/125 Rated pnmary current (A) 1000 up to 2000 Rated secondary current (A) 5 or 1 Secondary tap upon request Accuracy class of measuring core 0.1 :0.2S:0.2:0.5S:0.5;1:3 Instrument security factor 5 or 10 Rated burden of measuring core (VA) 1.25 up to 30 Accuracy class of protection core 5P:10P Accuracy limit factor 5or 10or 15or20 Rated burden of protection core (VA) 1.25 up to 30 Number of cores up to 4 Rated frequency (Hz) 162/3 : 50 : 60 Rated thermal short-time current (kA) Ith = 100 x In (max 120)/1 s Rated dynamic current (kA) ldyn = 2.5xlth Class of insulation E Weight (kg) 38 Cantilever strength (N) >5000 Maximum altitude of installation (m) up to 1000 Ambient temperature ('-0 -Sup to + 50 Specifications IEC61869-1 & 2: ANSI;BSetc. Capacitive voltage divider available upon request Drawwig Nr. 2129/12 2129^22
