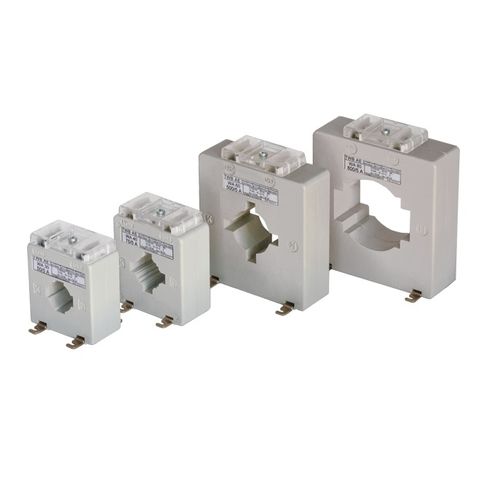

Instrument transformer WA seriesencapsulatedlow-voltagetoroidal
Add to favorites
Compare this product
Characteristics
- Type
- instrument
- Configuration
- encapsulated
- Electrical characteristics
- low-voltage
- Other characteristics
- toroidal, primary, secondary, frequency
- Primary current
Max.: 2,000 A
Min.: 50 A
Description
TWB SA manufactures all types of low voltage instrument transformers, current and voltage, 0.75kV and 1 kV, for indoor as well as for outdoor applications, according to IEC 61869-1. They are window, wound or split core type. They are either encapsulated by a high grade flame self-extinguishing polycarbonate housing or resin impregnated.
Highest voltage for equipment (kV) 072
Rated insulation level (kV) 072/3/-
Rated primary current (A] 50 up to 2000
Rated secondary current (A) 5 or 1
Oyercurrent factor 1,2
Acciracy class 05:1:3
Instriment security factor 5 or 10
Rated burden (VA) 1 up to 20
Rated frequency (Hz) 50:60
Rated thermal short-time current (kA) Ith = 60 x In
Rated dynamic current (kA) Idyn = 2.5 x Ith
Class of insulation E
Maximum altitude of installation (m) up to 1000
Ambient temperature K) - 5 up to + 50
Specifications IEC 61869-1 & 2
