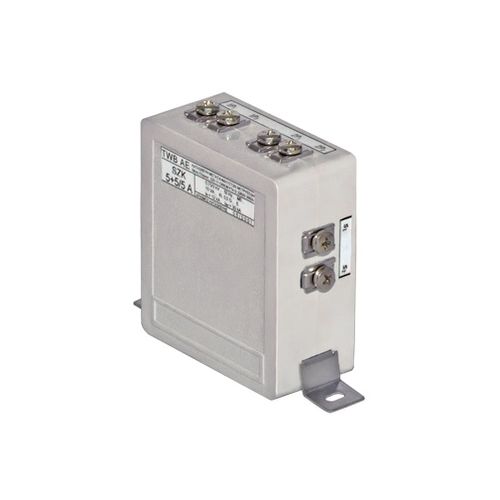

Instrument transformer SZKencapsulatedlow-voltage
Add to favorites
Compare this product
Characteristics
- Type
- instrument
- Configuration
- encapsulated
- Electrical characteristics
- low-voltage
- Primary current
Max.: 20 A
Min.: 1 A
Description
TWB SA manufactures all types of low voltage instrument transformers, current and voltage, 0.75kV and 1 kV, for indoor as well as for outdoor applications, according to IEC 61869-1. They are window, wound or split core type. They are either encapsulated by a high grade flame self-extinguishing polycarbonate housing or resin impregnated.
Highest voltage for equipment (kV) 072
Rated insulation level (kV) 0.72/3/-
Rated primary current (A) 1 up to 20
Rated secondary current (A) 5 or 1
Overcurrent factor 12
Ac oracy class 0.5S ; 0.5:1 : 3
Instrument security factor 5or 10
Rated burden (VA) 5 up to 30
Rated frequency (Hz) 50:60
Rated thermal short-time current (kA) Ith = 60 x In
Rated dynamic current (kA) Idyn = 2.5 x Ith
Class of insulation E
Maximum altitude of installation (m) up to 1000
Ambient temperature PC) - 5 up to + 50
Weight (kg) 0 60 up tp 1.10
Specifications IEC 61869-1 4 2
