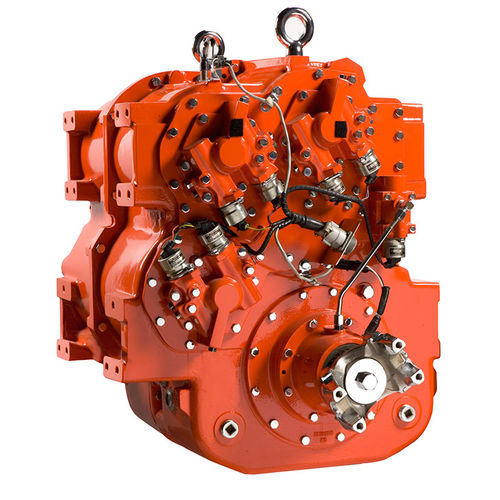

Powershift transmission TD61-1180 ARFF

The 1180 transmission system consists of an engine mounted 17.5 or 18.5 inch type 8 torque converter, a 6 speed power-shift transmission and an advanced electronic control system. Specifications Maximum gross input power (ARFF only) 705 hp (526 kW) Maximum input speed 2300 RPM Weight 1700 lbs. (770 kg) Maximum oil temperature at converter outlet 250 F Sump capacity 7 USG (26.5 liters) Cooling required ~25% of GHP Cooling pump capacity ~44 GPM @ 2100 RPM Remote mounted 30-70, 50-50, 70-30 with differential lock TD61-1180 output rotation opposite engine for forward
