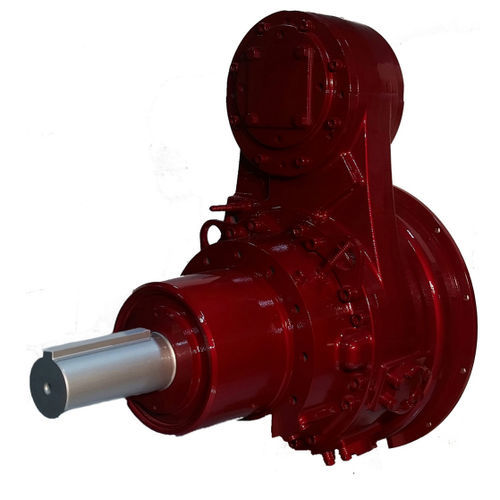

Power take-off with hydraulic clutch HP 500 series

horizontalfor heavy-duty applications

The HP500 is an oil-filled, multiple disc, hydraulically-actuated self-adjusting clutch. The HP500 has been developed with a number of unique features that offer reliability, productivity and power. The HP500 has been designed for a wide range of heavy-duty applications including crushers, grinders, mulchers, dredgers, heavy-duty drills and many others. Hydraulically actuated and self-adjusting wet clutch Suitable for in-line and side-load applications Advanced control system for smooth engagement Remote actuation via J1939 or switch input No pilot bearing High side load capability Maximum power rating 500 HP @ 1800 rpm Optional single tower (2-pads) or two tower (4-pads) auxiliary drive 400 HP maximum capacity per tower 450 HP maximum capacity for both towers Available pump pads: SAE “A” • SAE “B” • SAE “C” • SAE “D” • SAE “E” Pump tower rotatable by 0°/45°/90° CW/CCW 1:1 standard with optional 0.83:1 & 0.77:1 speed increase on pump tower SAE #1, SAE #2 & SAE #3 input housing SAE 355 (14”), SAE 290 (11.5”) & SAE 255 (10”) input coupling
