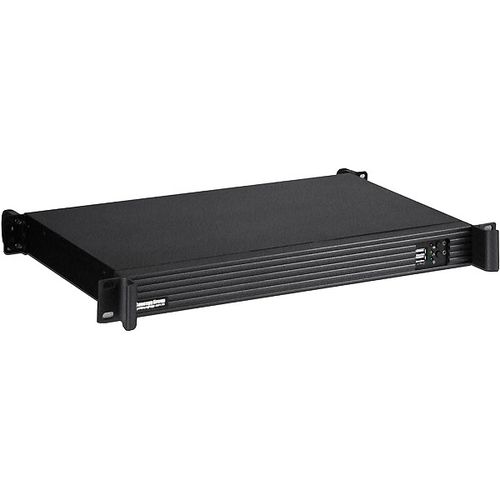

NAS server I1U0500RAIDnetworkcommunications
Add to favorites
Compare this product
Characteristics
- Type
- NAS, RAID, network, communications, database, web, calculation, terminal, print
- Mounting
- 1U, 19", embedded
- Processor
- Intel® Celeron®
- Applications
- industrial, business
- Other characteristics
- gigabit Ethernet, modular, USB
Description
Application : IPC, Industrial Server, Embedded, Short Rack Industrial computer, machine control
Type : aluminium front + 1.0mm steel body, black powder coated
Dimensions (WxDxH) : 19"/1HE(1U), 483x250x44 mm
Front-IO as option
Weight : 2,0 kg
Cooling : 2x 40mm fan
Operating condition : 0..40°C / 80% rel. humidity
CPU : Intel Celeron J3455
4x 1.5 - 2.3 GHz
RAM :
4 GB DDR3L
8 GB DDR3L
Mainboard : Gigabyte UltraDurable
I/O front (standard) : 2x USB 2.0
I/O back : 2x PS/2, 1x HDMI, 1x VGA, 2x USB 3.0 2x USB 2.0, 2x RJ45 (RealktekGLAN), 2x RS232, 3x Audio
I/O internal : internal I/O might be occupied - depending on your configuration
2x USB 2.0, 2x USB 3.0, 1x Parallel, 1x PCI (with optional Riser-Card), TPM
Storage : 2x 2.5" SSD (Industrial, MLC, 0..+70°C) or HDD (WD RED)
Software or Chipset RAID optional
Isolated anti-vibration design on all drive bays
