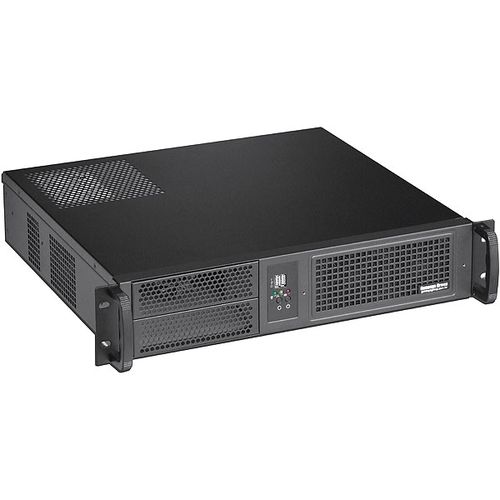

NAS server I2U1000

RAIDnetworkcommunications

Application : IPC, Industrial Server, Embedded, Short Rack Industrial computer, machine control Type : full metal 1.0mm construction, black powder coated dust-protection on the front Dimensions (WxDxH) : 19"/2HE(2U), 483x380x88 mm Weight : 5 kg Cooling : back: 2x 80 mm fan, with filter Operating condition : 0..50°C / 80% rel. humidity CPU : Intel Core i3 7100 2x 3.9 GHz Intel Core i5 7500 4x 3.4 - 3.8 GHz Intel Core i7 7700 4x 3.6 - 4.2 GHz Intel Xeon E3-1245v6 4x 3.7 - 4.1 GHz RAM 4 GB DDR4, ECC 8 GB DDR4, ECC 16 GB DDR4, ECC 32 GB DDR4, ECC 64 GB DDR4, ECC Mainboard : Supermicro Embedded, C236 Chipset I/O front (standard) : 3x 2.5"/3.5" hotplug bay, 2x USB 2.0 I/O back : 1x HDMI, 1x DVI-D, 1x Displayport, 2x USB 2.0, 2x USB 3.0, 2x USB 3.1, 2x RJ45 (Intel GLAN), 1x RS232 (slot bracket), 5x Audio, 1x SPDIF I/O internal : internal I/O might be occupied - depending on your configuration 1x m.2 (SATA+PCIe) 2242/2260//2280/2210 , 4x USB 2.0, 4x USB 3.0, 1x PCIe 3.0 x16, 1x PCIe 3.0 x4, 1x PCI 32bit (3 slots usable, low profile), TPM Storage : in hotplug bay: 3x 2.5" / 3.5" SSD (Industrial, MLC, 0..+70°C) or HDD (WD RED) 2 more 3.5" bays are on the inside 1x m.2 SSD (Industrial, MLC, 0..+70°C) Software or Chipset RAID optional Isolated anti-vibration design on all drive bays ODD : - Graphics : Intel UHD630 (i3, i5, i7) or P630 (Xeon)
