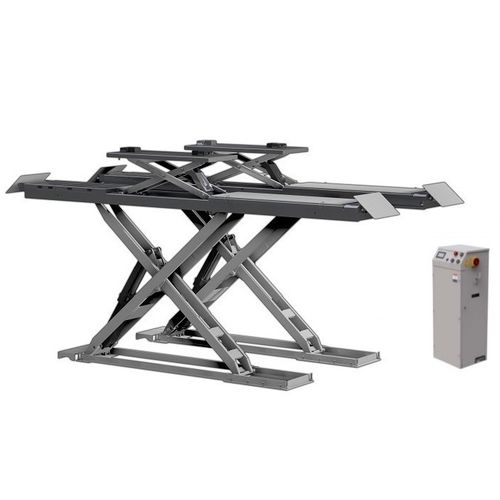

TyreON TSC4000X2A Alignment scissor lift - inground installation
Suitable for short and long passenger cars (multiple stretch extra large) vans and small lorries
The 4.8 meter long runways are 60.8 cm wide
With long scissors and oversized runways
Two hydraulic cylinders for heavy lifting
Manual override for descending in case of power outage (handpump)
Reduction valve - Control over descending speed
Safety valve (overload safety) - No damage to car lift in case of overload
Ascending/descending in about 60 sec.
Remote controlled lift of about 2,6 meter or less
Entirely powder coated finish
Required air pressure 6 - 8 bar
Width 216 cm and total length 513 cm
Weight of alignment scissor lift 2600 kg
Required depth concrete floor 15-20 cm - C20/25
Simple installation with system integrated depressurization and runway leveling out procedure
Controller L35,5 xW 37 x H108 (cm)
2nd scissor - Free Wheel system and wheel alignment
With the extra long rear wheel plates and spacious recesses for turntables, the TSC4000X2A is suitable for aligning short and long chassis vehicles up to 4T.
Regular and 3D wheel alignment
Hydraulic free wheel system - 4000 kg
Lift height 43 cm
Extendable platforms 150 - 200 cm
Runways with removable shims for turntables
Runways with built-in movable rear wheel plates - mechanically lockable
XL rear wheel plates - 1.8 meter
