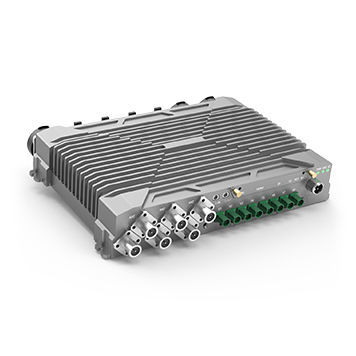

Edge AI PC GEAC90L series

embeddedNVIDIA® Jetson Xavier™ NXARM

The TZTEK GEAC90L A1 controller is designed specifically for robot controller, video codec, video analysis and other application scenarios. The controller has two versions based on the Nvidia Jetson Xavier NX module and the Nvidia TX2 NX module for different application scenarios and customer needs. With hardware timing and synchronized trigger circuits, The synchronization accuracy can reach microsecond level. The GEAC91L controller supports most commonly used sensors, including GMSL cameras, LiDARs, GNSS/INS, ultrasonic radars, etc. Product Characteristics 6-core ARM CPU up to 1.9 GHz frequency and with 384-core CUDA in GPU. 8 GMSL2 interfaces, compatible with GMSLI, each individually triggered. 4 independent Gigabit ethernet ports, supporting P TP and NTP time service, optional 4G, 5G, and M. 2 SSD function modules inside. Built-in 64GB EMMC for operating system, program data and more. IP65 protection level; working environment temperature -20-600C, meets random vibration requirements of 3Grms 10-1000 Hz. Rich interfaces with loose-proof and waterproof design, supporting multi-sensor access Meeting CE-EMC certification standards
