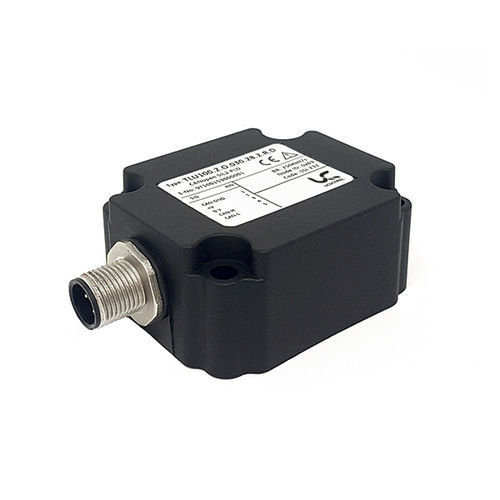

1-axis inclination sensor SSI2-axisCANopenMEMS
Add to favorites
Compare this product
Characteristics
- Number of axes
- 1-axis, 2-axis
- Output
- CANopen
- Technology
- MEMS, capacitive
- Other characteristics
- IP67
- Inclination
Max.: 360 °
Min.: 0 °
- Resolution
0.01 °
Description
SSI is available with one or two measurement axes. The inclinometer working principle is based on a micro machined silicon capacitive transductor (developed with MEMS technology). Utilizing gyro-compensated MEMS technology, the sensor position signal is instantaneous with no delays and has a static excellent linearity. SSI is suited for applications (cranes, aerial platforms, drilling machines and excavators) in harsh environments which are exposed to motion, shock and vibration, especially for mobile machines.
Features
>MEMS technology
>High protection level IP67 and wide temperature
>Range from -40° C ... +85° C
>Stable accuracy over whole temperature range
>Resolution up to 0,01°
>Single axis 0° to 360°
>Double axes ± 1 to ± 60°
>Optional redundant output
Catalogs
SSI
4 Pages
