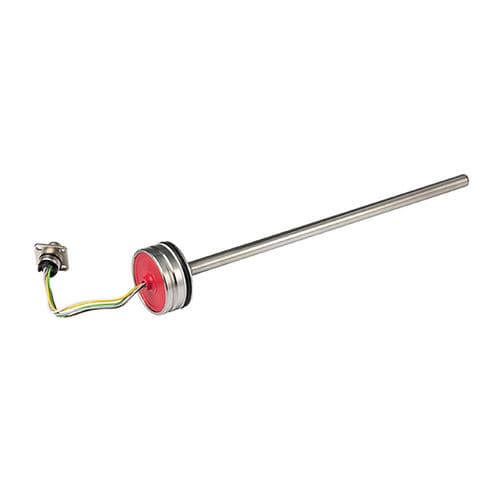

Linear position transducer SMT3000contactlessresistancemagnetostrictive
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Contact / non-contact
- contactless
- Technology
- resistance, magnetostrictive
- Applications
- heavy-duty
- Measuring range
Max.: 3,000 mm
(118.11 in)Min.: 100 mm
(3.94 in)- Linearity
0 %
- Measuring rate
Max.: 500 Hz
Min.: 10 Hz
- Supply voltage
Max.: 30 V
Min.: 9 V
- Ambient temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
SMT3000 is a magnetostrictive position transducer with flanged connection that installs completely inside oil-pressure cylinders. Its unique design, plus a wide range of cursor configurations, ensures easy installation and total compatibility with cylinder manufacturer specifications. Working temperature from -40 to +85°C, working pressures up to 350 bar, high resistance to vibration and shock give the sensor the indispensable strength needed for heavy-duty use. High performance in terms of transduction of measurement defined as linearity, hysteresis and repeatability.
Features
>Measuring range from 100 to 3000mm
>For integration in pneumatic and hydraulic cylinders
>High Resistance to shock and vibration
>Plug-in flange
>Absolute output
>Working pressures up to 350bar
>Customizable cursor
