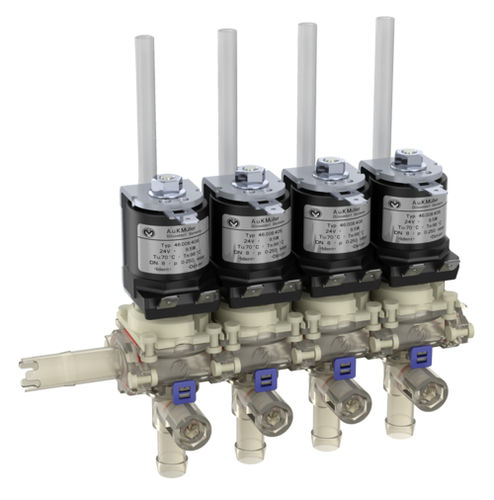

Servo-assisted solenoid valve 46.008.x06

2-wayNChydraulic

2/2-way solenoid valve of nominal diameter DN 8 for liquid dispense. This valve is direct controlled and normally closed (NC). Valves of this design are medium separated seat valves, where the plunger is separated by a diaphragm from the medium. Valve bodies can directly be connected. The valve outlet nozzle is removable. This valve can be manufactured with a variety of customised connections in DC or AC voltage. Low power or PPM triggering can be used. Electrical operating safety is achieved by PBT coating of the coil and can be supported by an additional protection circuit. The valve is available in different PSU valve body types and is distinguished primarily by its food grade and hot water capability. Applications Hot / cold drink dispensers Tank or boiler draining automatic animal feeding equipment Characteristics Direct acting internal plunger assembly medium separated valve bodies can be connected PTFE valve seat to inhibit scale build up removable outlet nozzle Long term performance capability flow rate adjustable (flow regulation screw) Suitable for food and hot water appliances No minimal pressure required Similar hydraulic performance for AC or DC types other hydraulic connections on request complete drainage of valve outlet after shut off Easy to assemble and service Coil change without opening of medium circuit, coil can be mounted 4 x 90° High operating safety through the use of high quality materials and 100% final testing of the products Technical data Protection type IP 00 higher IP-classes on request Coil connections Flat Tabs 6,3 x 0,8 mm according to EN 60529 (IP 00) Other Connections on Request Insulation class H according to EN 60730
