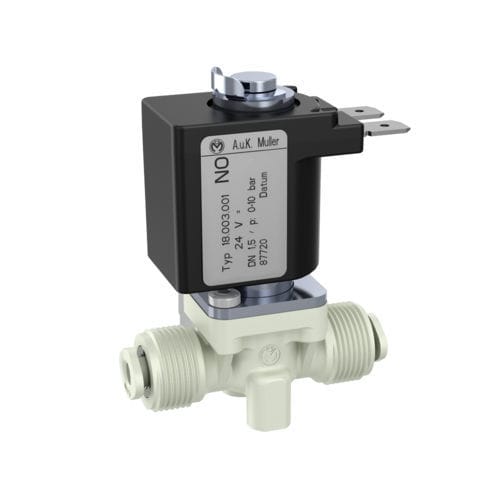

Servo-assisted solenoid valve 18.00x.001

2-wayNOfor hot water

2/2-way solenoid valve of several nominal diameters for use with neutral gases and liquids. This valve is direct acting and normally open (NO). Valves of this design are single chamber straight through valves, with threaded tube clamp or push-fit connections at outlet and inlet. The valve body is made of PPSU, which is suitable for hot water applications. This valve is designed for continuous operation (duty cycle 100%). Electrical operating safety is achieved by using high quality materials of insulation class F. Applications Steam cleaners and ironing machines Hot / cold drink dispensers (espresso machines) Medical equipment Industrial applications Characteristics Long term performance capability Suitable for food and hot water appliances Works from zero pressure Easy to assemble and service Coil change without opening of medium circuit, coil can be mounted 4 x 90° High operating safety through the use of high quality materials and 100% final testing of the products Technical data Voltage tolerance +10% -15% Duty cycle 100% Nominal power 8,3 W Coil connections plug socket, model B-industry form Insulation class H according to EN 60730 Protection class I according to EN 60730 (for incorporation in class I)
