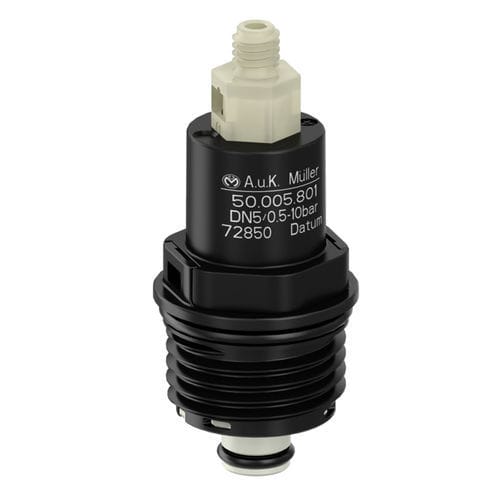

Cartridge valve 50.005.801

manualfor controlshut-off

2/2-way, latching cartridge valve with a nominal orifice DN 5 with a mechanical valve actuation. By manual operation, at a push of a button so to speak, the valve opens and closes. The manual actuation enables innovative user concepts for sanitary applications without requiring an external power supply. It is particularly suitable for the control of drinking water as hand-operated shut-off valve in faucets for washbasins or kitchen. The design outline has been reduced so far that integration in appropriate components, while using a minimum amount of space, is given. A further advantage is the simple “screw in” design, supporting easy assembly, service and test by the customer. The flow rate of the cartridge valve has been optimised in such a way, that the nominal diameter of DN 5 fulfils the standard requirements for sanitary tap ware.. Applications Industrial appliances Sanitary fittings for kitchen or showers Characteristics Mechanical valve actuation at your fingertip Simple, manual operation Compact design Available with two installation lengths Pre-tested functional unit Hygiene benefit by 100% final testing with air Particle protection by stainless steel filter in the inlet Long term performance capability Easy to assemble and service Cylindrical design Any fitting position high operating safety Technical data Type cartridge valve with Mechanical activation mode of operation servo-controlled Function manually operated, latching Connection thread M22 x 2 Cap connection thread M6, others on request Fitting position any Media Cold and heated potable water and physically and chemically similar media Flow factor Kv 7,9 l/min @ 1 bar
