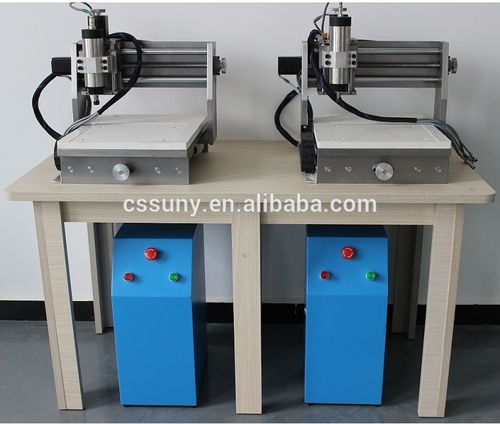

CNC drilling machine SUNY-ZZC400

pecification: 1.Usage: automatic drilling and milling functions of circuit board; 2. Maximum size: 300mm*400mm; 3. Working mode: 2.5 D double-sided processing mode 4. Control handle is made up of ARM + FPGA of embedded control system, there is double USB interface in control handle, realizing masterslave USB communication model, that is, as the main USB device, directly read U disk data, as the slave USB device, communicate with the computer, which can completely work off the computer; 5. All module driving mode, three step motor modules + driving chip united to drive XYZ axis moving; 6. Casting fuselage, Y axis moves driving beam arm move, in sculpture and drilling process, no displacement of circuit board; 7. Random configuration of processing data auxiliary processing software, 8. With function of X, Y, Z axis hardware and software limit; 9. High power spindle motor, higher processing precision, with memory function without electricity, no worries about outage; 10. Handle human-computer interface: 128 * 64 dot matrix liquid crystal display + 18 multi-function keys, with simple and intuitive operation; 11. Processing precision: ±0.01mm 12. Repeat precision: 0.01mm; 13. Suitable drilling flower: 0.3mm~3mm Drilling handle: 3.175mm; 14. Suitable milling cutter: 1MM~3MM Cutter handle: 3.175MM 15. Processing speed: 0~3m/min(actual-time adjustable); 16. Spindle motor: 1200W frequency conversion motor The highest speed 61000 revolves/min; 17. Step motor: 35W four phase step motor *3; 18. Shaft driving mode: entire advanced screw driving 19. Spindle movements itinerary: 60mm; 20.With auto tool change function. 21.Tool change number: 10
