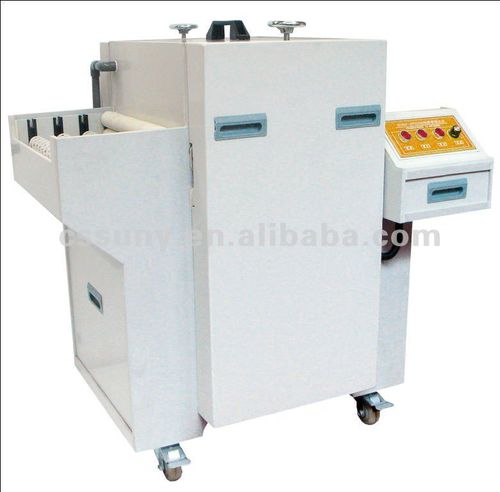

Metal polishing machine SUNY-ZPG300

PCBautomatic

Circuit board polishing machine SUNY-ZPG300 1. Product usage: automatic buffing processing of PCB surface; 2. Main functions: double screw adjusting wheel; electrical automatic control and water drainage; transmission guide rail dismantling, automatic transmission; 3. Self-contained trundle, convenient for movement and transportation; 4. Brush board method: single side, double side buffing; 5. Brush roller type: Φ110mm 320# 6. Brush board dimension: width≤300mm length≥100mm; 7. Brush board thickness: 0.5mm~6mm adjusted through the hand wheel; 8. Transmission motor: 90W, 0.2M~6M/min stepless speed regulation; 9. The bottom adopting universal caster wheel, convenient for moving and transportation; 10. Power supply: AC380V/50Hz; 11. Entire machine power: 0.75KW 12. Dimension: 750 mm×730 mm×820 mm; 13. Weight: 80 kg.
