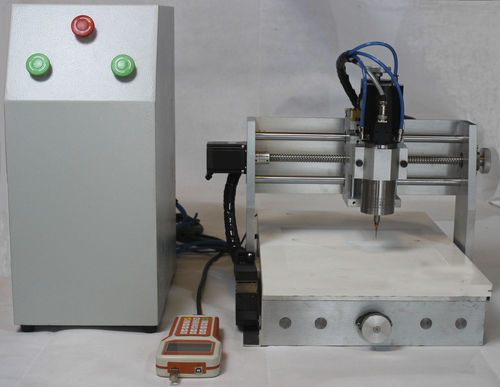

Imaging system ZK-3030

Model Packing Warranty ZK-3030 PCB CNC Router 1 plywood case 850*800*800mm, 96kg Machine one year, spindle half year Detailed information Certificate CE Effective working area 300(X)mm*300(Y)mm*80(Z)mm Max.thickness of the materials ≤80mm(the distance between Z-axis and the bottom of the working station) Moving method Platform moving Material Whole cast aluminum Working table Aircraft aluminium T slot with PVC layer Guide rail Linear round guide rail Transmission Ball screw for X Y Z-axis ( X Y Z-axis: #1605, TBI) Driving mode Stepper motor ( X Y Z-axis: 57BYG-311) Spindle motor 800wwater cooling Spindle collet type ER 11 Suitable cutter tools diameter 3.175mm, 4mm, 6mm Voltage AC 220V 50/60Hz, single phase Spindle speed 0-24000rpm/min Empty traveling speed 0-8000mm/min Engraving speed 0-6000mm/min Machine accuracy 0.05mm Resetting accuracy 0.05mm Diagonal error 1mm Resolution ratio 0.005mm Control system PCI NcStudio (for desktop computer, windows XP/2000) Designing software Protel 99, Copper CAM Minimum line diameter 6-8mil Minimum line spacing 8mil Minimum step distance 0.003125mm Motor wire High soft specially for Numerical Control( 4*0.75) Spindle wire Shielding high soft (3*1.5) Carving Instructions G code *Uoo *mmg *plt HPGL Running environment temperature 0-45 ℃ Relative humidity 30%-75% Tools 24 pieces, 10 pieces drilling tools, 10 pieces engraving tools, 3 pieces corn milling tools, 1 piece bottom clearance tools Accessories Water pump(1), tools (24), power line, USB line, fixtures(4), user manual, software CDs,Ncstudio card(1), spanners(2), brush,collets(3), double faced adhesive tapes (2),water
