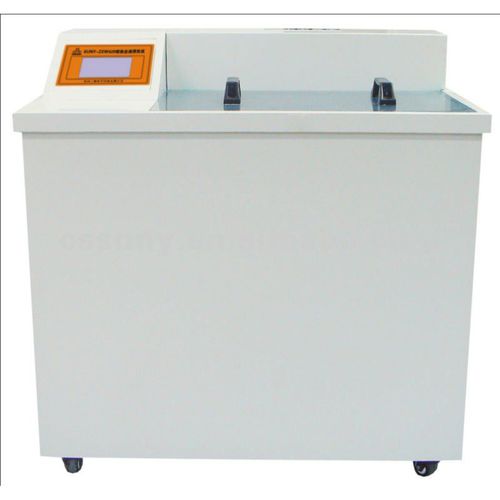

Spray cleaning machine SUNY-ZXW420

automatic

Spray screen cleaner SUNY-ZXW420 1. Usage: automatic cleaning of screen frame 2. Function characteristics: opening-cover detection function to better protect the operator not splashed by liquid; low liquid alarm function, preventing dry heating function, automatic constant temperature function, automatic regular alarm function; 3. Transfer speed: up and down 10 times/min, precision lead screw transmission and stepping motor control; 4. Transmission mode: vertical automatic operation, automatic operation direction up to down, specific jig cleaned by help screen, screen without fixture; 5. Screen cleaning pressure: 2-4KG/cm2 adjustable; 6. Screen cleaning mode: hanging double sided spraying cleaning; 7. Control system: high-performance ARM embedded processor + embedded operating system, human-computer interface: big screen color LCD screen + touch screen; In touch screen you can read electronic edition screen cleaning process manual; In touch screen you can play the circuit board design sketch after screen cleaning process; 8. Screen cleaning time: 10-20 s/net, 0~99min59s software can be set 9. Screen cleaning dimension: 600mm×500mm; 10. Liquid volume: 80L; 11. Optional configuration: Ethernet interface, realizing remote diagnosis, monitoring, booking open and close the machine and etc. through the wireless or local area network and the Internet, seamless connection with network management system and software, mating PCB network management software, providing long-term free upgrades service; 12. Power supply: AC380V/50Hz, rated power: 3.5 KW; 13. Overall dimension: 970mm×610mm×1000 mm3 14. Net weight: 120KG.
