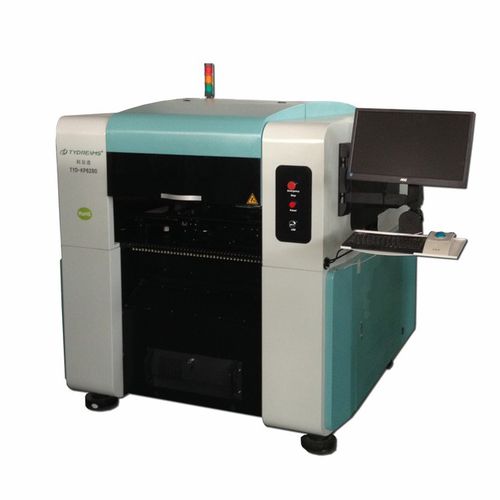

SMT pick-and-place machine SUNY-ITP6280automatic
Add to favorites
Compare this product
Characteristics
- Applications
- SMT
- Other characteristics
- automatic
Description
Specification:
1 Maximum pcb size 420×305mm
2 Z axis maximum moving range 40mm
3 Maximum pick and place speed 11000 cph
4 Average pick and place speed 7000 cph
5 Min moving distance 0.004mm
6 Positioning precision 0.03mm
7 Pick and place head 4
8 Feeder number 80(8mm)
9 Range of application 0402, 0603, 0805, 1206(3014), 1210(3528), 5050, SOT, SOIC, QFP, QFN (45mm*45mm)
10.X / Y drive structure Panasonic high-precision AC servo + Taiwan Taiwan high precision ball screw + Taiwan High precision square guide
11 Moving drive system High speed DSP digital high pressure drive
12 Component angle 0-360°any angle, autosynchronous turning when moving
13 Belted feeder 8, 12, 16, 24mm
14 X/Y moving mode New straight line interpolation linkage
15 Vacuum source Vacuum generator, vacuum pump optional
16 Operation system PC control Windows xp,
17 Programming mode Industrial computer vision programming, PCB file coordinate guide-in
18 Nozzle automatic change system Standard with 16pcs nozzles
19 Rail transmission system Standard,realize the PCB automatic feed in and out.
20 IC tray Standard
