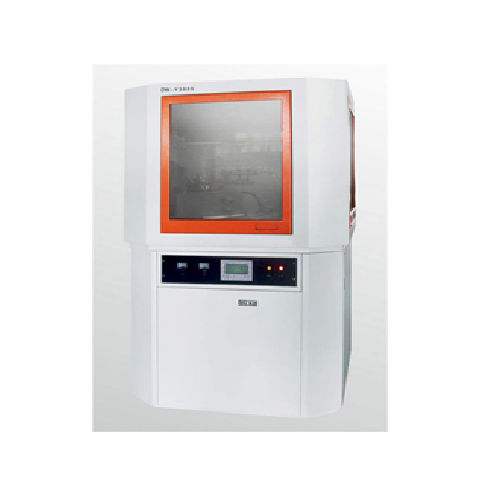

X-ray diffractometer XRD-Y3000

XRD

Features •The perfect combination of hardware and software systems meets the needs of academics and researchers in different application areas •High precision diffraction angle measurement system obtains more accurate results •High stability of the X-ray generator control system gets more stable repeatability precision •Programmable operation, integrated structure design, easy operation, elegant outlook X-ray diffraction (XRD) is a versatile test instrument to reveal the crystal structure and chemical information: •Unkown samples in a variety of phase identification •Mixed samples with known quantitative phase analysis •Crystal structure analysis •Crystal structure changes under Unconventional conditions (high temperature, low temperature conditions) •Analysis on material surface film •Analysis on metal material texture and stress Technical parameter Rated power: 3kW Tube voltage: 10-60kV Tube current: 5-80mA X-raytuble: glasstube, ceramictube, ripple ceramictube: Cu, Fe, Co, Cr, Mo etc, Power 2kW Focus size: 1 x 10mm or 0.4 x 14mm or 2 x 12mm Stability: 0.01% Goniometer structure: Horizontal (8-2 8) Radius of diffraction: 185mm Scanning range: 0-164 Scanning speed: 0.0012°- 70cmin Max. revolving speed: 1007min Scanning fashion: 8-28 linkage, 8. 28 single action; continuous or stepping scanning Angle repeatable accuracy: 1/1000° Minimal stepping angle: 1/1000° Detector proportional counters(PC): or scintillation counters(SC) Maximal counting rate of linearity: 5x105 CPS (with the compensate function of drop out counting) Energy resolution ratio; $25% (PC ). 50% (SC) Counting fashion : differential coefficient or intégral, PHA automatically, Dead time regulate
