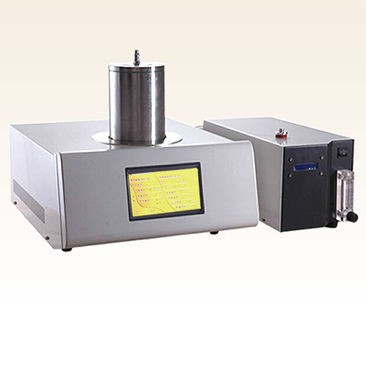

Temperature analyzer STA200

TGA-DTADSCTGA

Product introduction: Synchronous thermal analysis combines TGA (Thermogravimetric Analysis) with DTA (Differential Thermal Analysis) or DSC (Differential Scanning Calorimetry), in which we can get the information of TG and DTA or DSC in synchrony using the same sample during the same operation. Measure and research the following characteristics of the materials: DSC: Melting and crystallization, phase change, reaction temperature and heat, heat of combustion and specific heat capacity, etc TG: Thermal stability, decomposition, REDOX, adsorption and adsorption, free water and gesso content, ingredients proportion computation, etc Technical parameters: TGA/DSC STA200 Synchronous thermal analyzer 1. - Température range: Room température ~1150°C (Can be extended to 1350°C) 2. - Température resolution: 0.1 °C 3. - Température fluctuation: ±0.1 °C 4. - Heating rate: 1 ~ 80 °C / min 5. - * Cooling rate: 1 ~ 20 °C / min optional cooling System 6. - Température control mode: Rising température. Cooling température. Constant température 7. - Constant température time : 0~300min Can be set arbitrarily 8. - cooling time: 15min(1000°C~100°C) 9. - Wide range of weighing: 1mg~2g (Can be extended to 5g) 10. - DSC measuring range: 0 ~ ±500mW 11. - DSC Resolution: 1pW 12. - Resolution: 0.1 ug 13. - Constant température and time: 0 - 300min Can be set arbitrarily 14. - Display: Chinese characters liquid crystal display (LCD) 15. - Atmosphère: Inertia. oxidability, reducibility. static and dynamic 16. - Atmosphère device: Built-in gas flow meter. including switch two way gas and control flow volume 17. - Software: Intelligent software can record TG curves automatically, Processing data and print experimental statements
