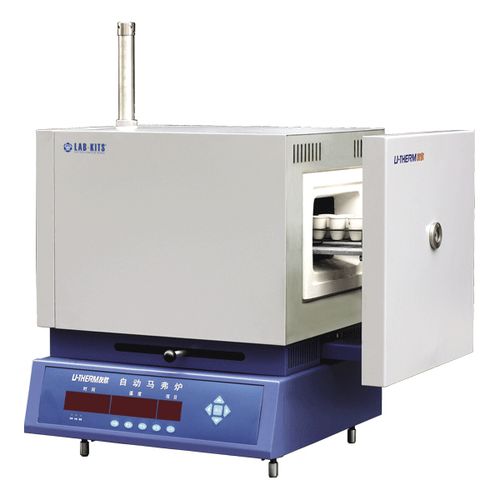

Chamber furnace FC-MF-IC

electriclaboratory

Application Area Intelligent Muffle Furnace applicable in the industry such as electrical power, coal, commerce inspection, environment protection, metallurgy, paper making, petrochemical, earth probe and research institute or quality inspection organization to test the ash or Volatile Matter content in the coal materials. Technical Parameter Temperature testing range: RT - 1000 ℃ Temperature testing resolution: 1 ℃ Temperature uniformity: ± 5 ℃ Time controlling range: 0~5999 min Time controlling resolution: 1 min Time testing precision: 30s/24h Power Supply: 220V, 50/60HZ Power: ≤ 4 KW Dimension: 460mm×550mm×400 mm Weight: 55kg Features 1. Controlled by microcontroller. With LED displayer and film keyboard, convenient in operation. 2. Automatically read temperature, control temperature, and control time; with constant temperature system. The result needs manual calculation and can not be stored. 3. In every experiment, the ash or Volatile Matter of a couple of samples (rather than a single sample) can be tested out. 4. Alternative in temperature controlling or time controlling, so the customer can do the experiment according to his own need. 5. Using the advanced light-fiber muffle furnace. With scientific and novel structure. Quick rise in temperature. Excellent performance in stabilizing the furnace temperature.
