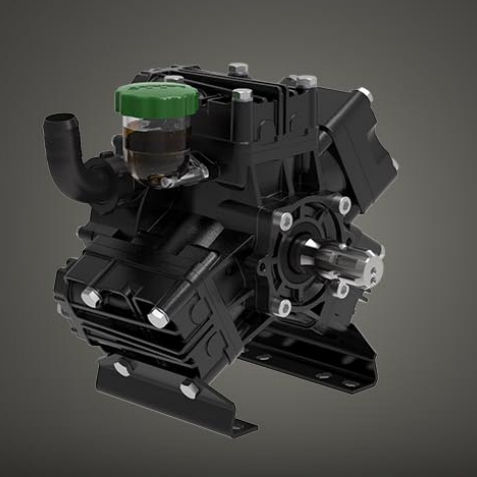

Diaphragm pump DELTA 75 serieswaterstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- high-pressure, sewage, washing, firefighting, spray, descaling
- Material
- aluminum
- Other characteristics
- mechanical, standard, double
- Flow
Min.: 57.7 l/min
(15.24273 us gal/min)Max.: 79 l/min
(20.86959 us gal/min)- Pressure
Min.: 0 bar
(0 psi)Max.: 40 bar
(580.151 psi)- Power
Min.: 0.4 kW
(0.54 hp)Max.: 5.7 kW
(7.75 hp)- Length
342 mm
(13 in)- Width
287.5 mm
(11.32 in)- Height
300 mm
(11.81 in)- Weight
Min.: 18.9 kg
(41.67 lb)Max.: 19.8 kg
(43.65 lb)
Description
The 3-diaphragms pump DELTA 75 produces a flow of 79 l/min and operates at a maximum pressure of 40 bar. It is available with single or double splined shaft.
Semi-Hydraulic diaphragm pump with aluminium anodized heads suitable for chemical products, die casted anodized aluminum crankcase resistant to corrosion, inspectionable valves with spherical design to increase the volumetric efficiency, pistons with ring to ensure less wear of the pumping parts.
It is equipped as standard with the new GREENTECH diaphragm, made of an innovative material that reduces the deformation caused by use and improves the mechanical and chemical resistance.
