Water pump PENTA 600 seriesreciprocatingstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Technology
- reciprocating
- Mobility
- stationary
- Domain
- industrial
- Material
- stainless steel, steel, aluminum, ceramic
- Other characteristics
- double, flow
- Flow
Max.: 32.1 l/min
(8.47992 us gal/min)Min.: 21 l/min
(5.54761 us gal/min)- Pressure
600 bar
(8,702.264 psi)- Power
24.1 kW, 32.1 kW, 34.5 kW
(32.77 hp, 43.64 hp, 46.91 hp)- Length
419 mm
(16 in)- Width
409 mm
(16.1 in)- Height
226 mm
(8.9 in)- Weight
44.6 kg
(98.33 lb)
Description

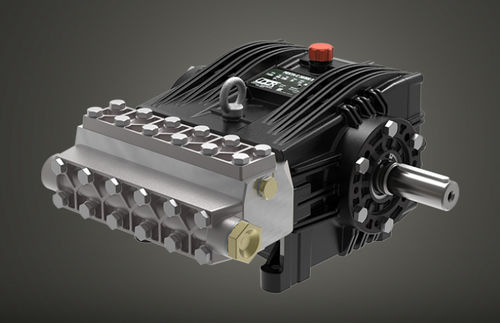

Reciprocating plunger pump, 5 solid ceramic plungers, block-style stainless steel head, aluminum die cast crankcase with cataphoresis coating, double sealing system, hardened steel crankshaft, oversize roller/ball bearings.
The pumps of this series have a Ø35 mm cylindrical male shaft, they produce a flow from 21 to 30 l/min, they operate at max 600 bar.
