Water pump VX6 seriesreciprocatingstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Technology
- reciprocating
- Mobility
- stationary
- Domain
- industrial
- Material
- steel, aluminum, ceramic, brass
- Other characteristics
- double, flow, reinforced
- Flow
Max.: 433.4 l/min
(114.49217 us gal/min)Min.: 260 l/min
(68.68473 us gal/min)- Pressure
60 bar
(870.226 psi)- Power
31.3 kW, 33.1 kW
(42.56 hp, 45 hp)- Length
631 mm
(25 in)- Width
491.5 mm
(19.35 in)- Height
248 mm
(9.76 in)- Weight
90 kg, 91 kg
(198.42 lb, 200.62 lb)
Description

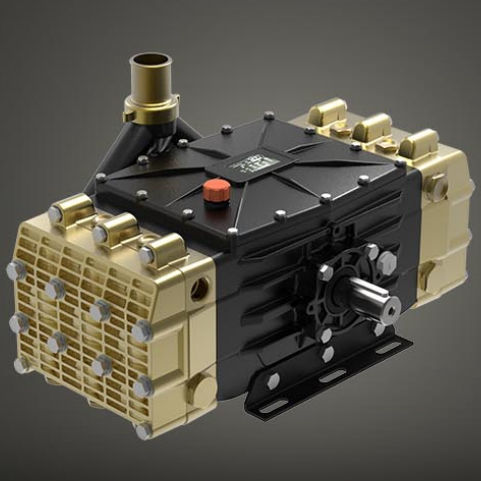

Reciprocating plunger pump, 6 solid ceramic plungers, forged reinforced brass head, aluminum die cast crankcase with cataphoresis coating, triple sealing system, hardened steel crankshaft, oversize roller/ball bearings.
The pump VX6 has a double splined/cylindrical shaft, it produces a flow from 260 to 411,7 l/min, it operates at max 60 bar.
