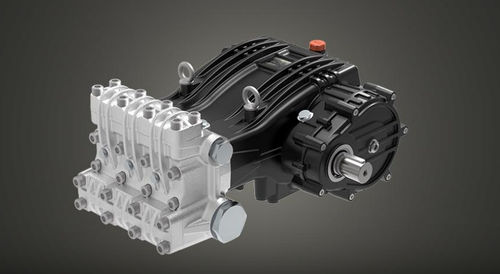

Water pump HXR seriesreciprocatingstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Technology
- reciprocating
- Mobility
- stationary
- Domain
- industrial
- Material
- steel, aluminum, ceramic, nickel
- Other characteristics
- flow
- Flow
Min.: 124.5 l/min
(32.88942 us gal/min)Max.: 400 l/min
(105.66882 us gal/min)- Pressure
Min.: 100 bar
(1,450.377 psi)Max.: 300 bar
(4,351.132 psi)- Power
Min.: 71.4 kW
(97.08 hp)Max.: 80.4 kW
(109.31 hp)- Length
729 mm
(29 in)- Width
580.5 mm
(22.85 in)- Height
306 mm
(12.05 in)- Weight
181 kg
(399.04 lb)
Description
Reciprocating plunger pump, 3 solid ceramic plungers, nickel plated spheroidal cast-iron head, aluminum crankcase with cataphoresis coating, triple sealing system, hardened steel crankshaft, oversize roller/ball bearings.
The pumps of this series complete with gear-box, have a Ø50 mm cylindrical male shaft, they produce a flow from 124,5 to 395,1 l/min, they operate at max 300 bar.
